Application
The RAK-1 and RAK-2 is a suitable solution for cleaning the
air from welding fumes forming at the mobile and stationary
welding posts. The polluted air is captured through
the ERGO extraction arm attached to the device. After the
filtering process, the air is recirculated back to the room.
Due to the silent work, it is possible to put the filtering unit
close to the workplace.
 |
 |

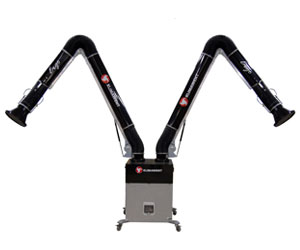

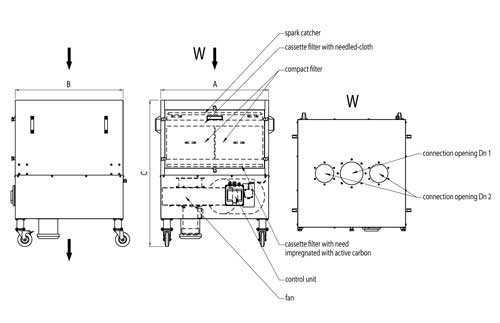

RAK-2-M
mobile version without the filter cover) |

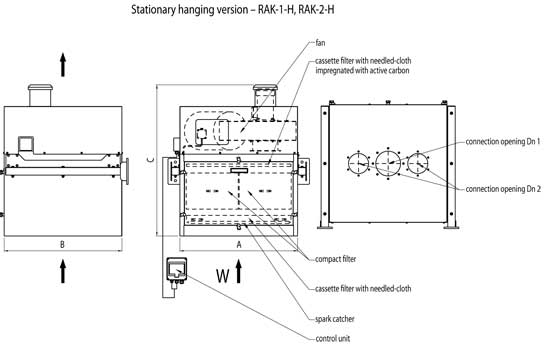

RAK-2-H - stationary hanging version |
 |
 |
RAK-1-M
mobile version |
RAK-1-H stationary hanging version |
Structure
The housing has a rectangular and compact housing and there are different dimensions and volume flows of the device. The RAK-1 can be equipped with one extraction arm ERGO-L of diameter Ø 6" or two extraction arms ERGO-K – diameter Ø 5".
The RAK-2 can be equipped with one extraction arm ERGO-D of diameter Ø 8" or two extraction arms ERGO-L – diameter Ø 6".
Both these models RAK-1 and RAK-2 are produced in two
versions:
- Mobile version – to work at the mobile work posts — the housing is equipped with castors and there are handles to displace the device.
- Hanging version – for the stationary places – there are bracket to install it to the wall.
The housing contains following elements: net filter (sparkcatcher), cassette filter with needled-cloth, compact filter, needled-cloth filter impregnated with active carbon.
The operation and control are carried out by means of a control unit. In the mobile version the control unit is placed on the device housing, whereas for the stationary mobile version the control unit has to be installed separately in a place convenient for User.
Technical data
| Type |
Part # |
Vol.
flow
[cfm] |
Disposable
pressure
[in. w.g] |
Supply
[V] |
Motor rate
[HP] |
Noise level
[dB(A)] |
Weight
[lb] |
Compact filter |
| dimensions [in] |
filtering efficiency |
| RAK-1-M |
704U72 |
600 |
2.8 |
120 |
1.5 |
69 |
364 |
30 × 24 × 11.5
1 pc. |
95 % |
| RAK-1-H |
704U73 |
| RAK-2-M |
704U74 |
1200 |
4.0 |
3 × 230/ 460 |
2.0 |
70 |
463 |
35.8 × 16.5 × 11.5
2 pc. |
95 % |
| RAK-2-H |
704U75 |
Replaceable filters
| Sort of filter |
Type |
Part # |
Suitable unit |
| Net filter (spark-catcher) |
FSR-1 |
838F65 |
RAK-1 |
| FSR-2 |
838F66 |
RAK-2 |
| Cassette filter with needled-cloth |
FWR-1 |
838F67 |
RAK-1 |
| FWR-2 |
838F68 |
RAK-2 |
| Compact filter |
FKR-1 |
838F60 |
RAK-1 |
| FKR-2 |
838F61 |
RAK-2 |
| Needled-cloth filter impregnated with active carbon |
FCR-1 |
838F69 |
RAK-1 |
| FCR-2 |
838F70 |
RAK-2 |
| Type |
Dimensions [in] |
| A |
B |
C |
Dn 1 |
Dn 2 |
| KF-U-1 |
34.0 |
25.6 |
49.6 |
6 |
5 |
| RAK-1-H |
46.9 |
| RAK-2-M |
37.4 |
37.4 |
50.8 |
8 |
6 |
| RAK-2-H |
48.0 |
*NOTE: Placing the order specify the part № and type designation of the given device.
