Application
The hanging exhaust extractors are applied for capturing the exhaust fumes emitted by vehicle’s exhaust pipes during
engine tests, adjustments and diagnostics.
Structure
The extractor consists of wall bracket, flange fastened or roof fan and double or single coupling for hose attachment. The
user clamps the nozzle into the exhaust pipe.
For double exhaust extractors we recommend metallic nozzles, which are shutting off automatically after nozzle disconnection from the exhaust pipe.
 |
 |

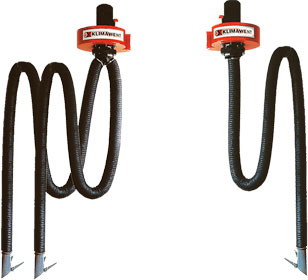

Hanging extractor
applied
with flange fastened fan |
Hanging extractor
applied
with
roof fan |
CAUTION: The elements drawn by broken line are not belonging to the extractor set.
On demand are delivered ventilation accessories: roof base, silencer etc.
Technical data
Single
hanging
extractor |
Type |
Part # |
Fan |
Hose |
| Fan sort |
Type |
Diameter
[in] |
Length
[ft] |
Thermal
resistance |
OW-1-100
OW-1-125
OW-1-150 |
803O90
803O92
803O94 |
flange
fastened |
WP-05-E
WP-07-E
WP-08-E |
4
5
6 |
16.4
16.4
16.4 |
320 F
(intermittent up
to 392 F) |
OW-1-100
OW-1-125
OW-1-150 |
803O91
803O93
803O95 |
roof
application |
WP-05-D
WP-07-D
WP-08-D |
4
5
6 |
16.4
16.4
16.4 |
Double
hanging
extractor |
OW-2-100
OW-2-125 |
803O96
803O98 |
flange
fastened |
WP-07-E
WP-08-E |
4
5 |
2 × 16.4
2 × 16.4 |
OW-2-100
OW-2-125 |
803O97
803O99 |
roof
application |
WP-07-D
WP-08-D |
4
5 |
2 × 16.4
2 × 16.4 |
Nozzles
Sort of
nozzle |
Type |
Part # |
Connection
diameter
[in] |
Inlet size
[in] |
Weight
[lb] |
Description |
 |
D-100
D-125
D-150 |
819S09
819S10
819S11 |
4
5
6 |
4
5
6 |
2.9
3.5
4.9 |
metallic with
shut-off cup |
 |
AN-100
AN-125
AN-150 |
819S06
819S07
819S08 |
4
5
6 |
4
5
6 |
2.2
2.6
3.2 |
metallic with
a clamp
wheel |
 |
SZGO-125
SZGO-150 |
819S28
819S29 |
5
6 |
6
6.7 |
5.5
7.1 |
circular rubber with
clamping mechanism |
 |
SZGP-100
SZGP-125 |
819S18
819S19 |
4
5 |
7.1 × 4
8.7 × 6 |
4.6
7.1 |
oval rubber with
clamping mechanism |
